Oil resistant, halogen-free, flame retardant, low viscosity characteristics of high mixing material sheathed TRVVSP anti-interference shielding cable

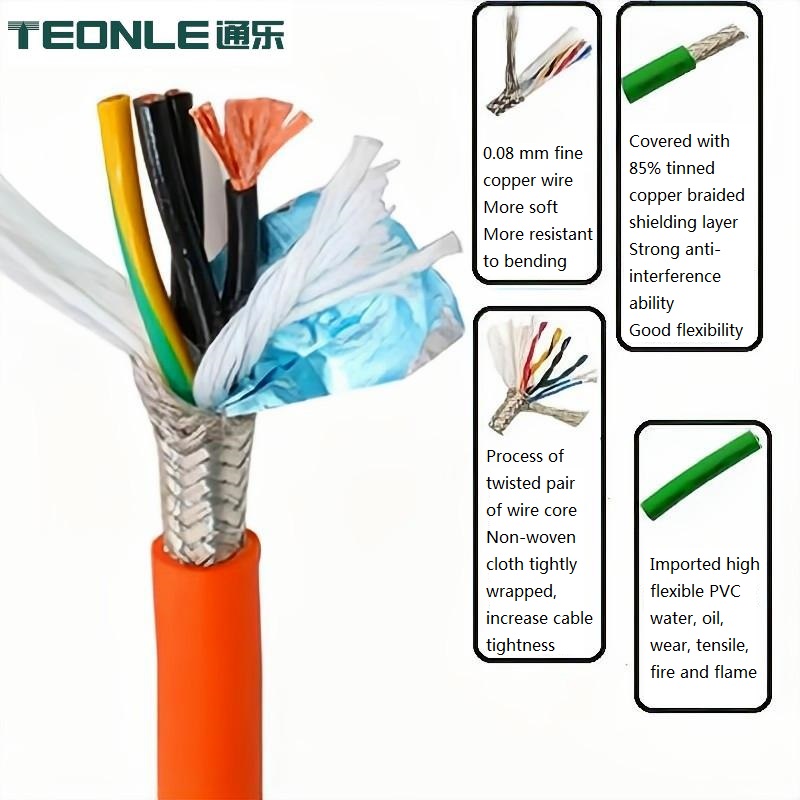

Conductor: fine bare copper wire, section 0.1mm2 (VDE 0295 Class6 standard)

Insulation: PVC/TPE/PE/ automotive material

Skein: double skein

Color: When the cross-sectional area is less than 0.5mm2, color separation is adopted (DIN 47100 standard).

When the cross-sectional area is greater than or equal to 0.5mm2, black cable core white digital code + yellow/green cable is used

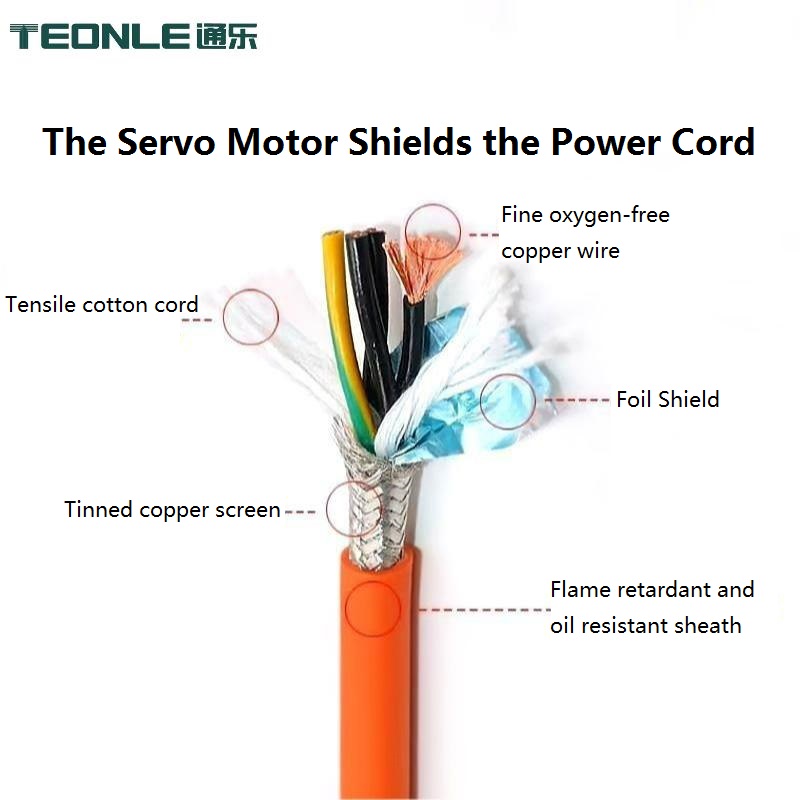

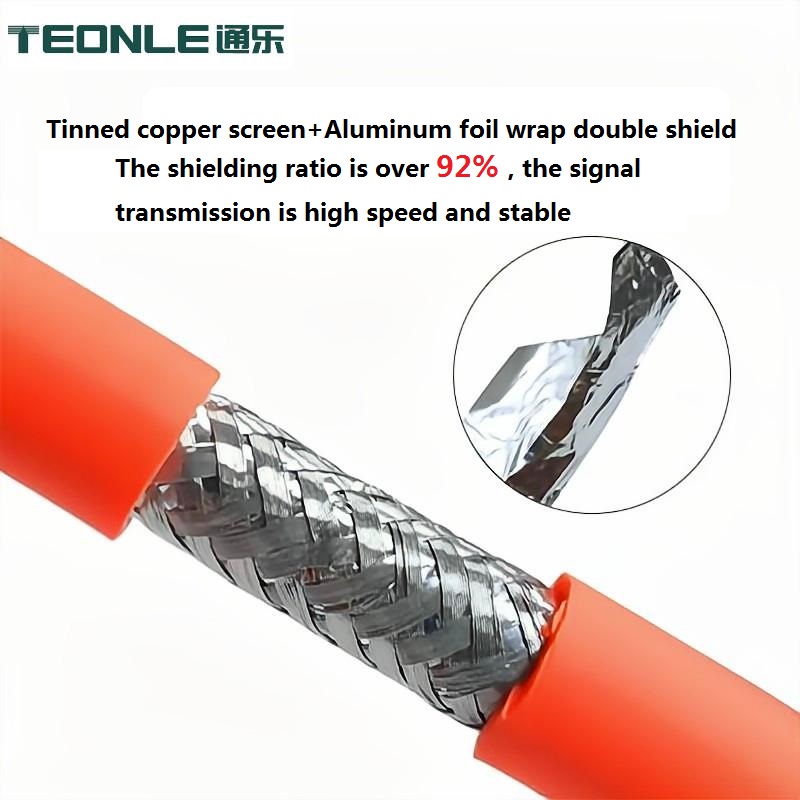

Shielding: aluminum foil wrap + tinned wire braid

1, can be customized color core or coding core according to customer requirements.

2, the use of special nitrile composite material, reduce the cable diameter, reduce the installation space requirements.

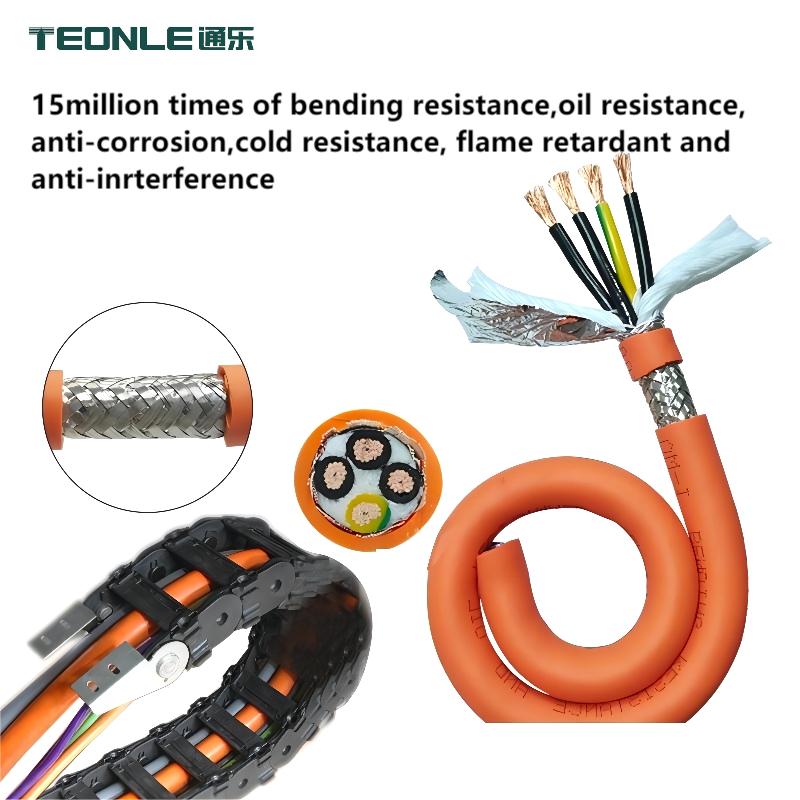

3, the design cycle bending life of 6 million to 20 million times.

4, teleportation speed: 2m - 4m/s.

5, with flexible, mobile, wear resistance, oil resistance, bending resistance, distortion resistance, folding resistance

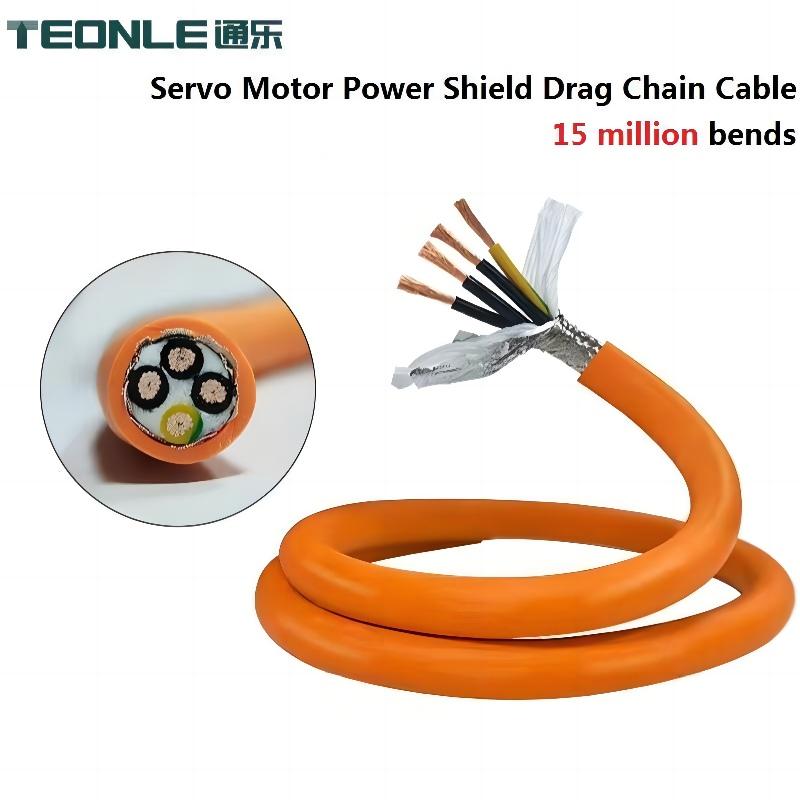

TRVVSP cable is a flexible, twisted, shielded cable that can be used in a towing chain. The pair structure can effectively prevent crosstalk between adjacent wire pairs, and the copper mesh braided shield can also effectively prevent interference from internal and external, so that the data transmission is more secure and reliable.

1, can be customized color core or coding core according to customer requirements.

2, the use of special nitrile composite material, reduce the cable diameter, reduce the installation space requirements.

3, the design cycle bending life of 6 million to 20 million times.

4, teleportation speed: 2m - 4m/s.

5, with flexible, mobile, wear resistance, oil resistance, bending resistance, distortion resistance, folding resistance
